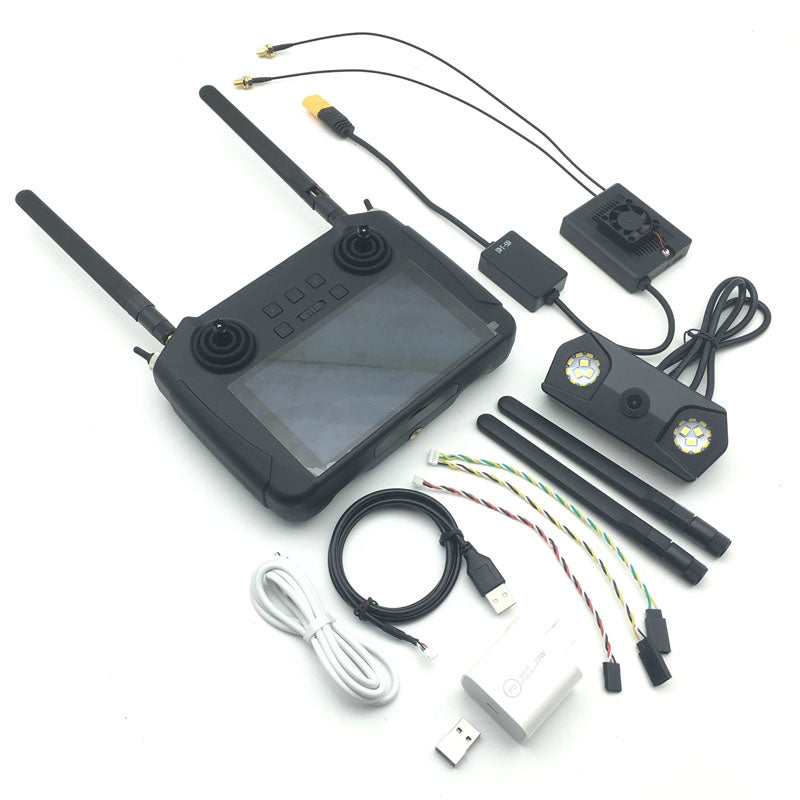

SIYI MK15 Remote Controller with Camera ( Agri Version)

SIYI MK15 Mini HD Handheld Radio System Transmitter Remote Control 5.5inch Monitor 1080P FPV 15KM FCC Certified

Note: MK15 remote controller has passed the CE, FCC, KC (Korea) and MIC (Japan) certificate well. If you want to buy Japanese version, please choose the MK15E remote controller.

Specification:

Overall

Max Transmission: 15km (unobstructed, free of interference)

AG control range: 3.5km (flying at 3 meter height)

Channels: 13

Datalink supported FC: Pix / APM

Videolink supported GCS (standard RTSP video stream): Q Ground Control / Mission Planner

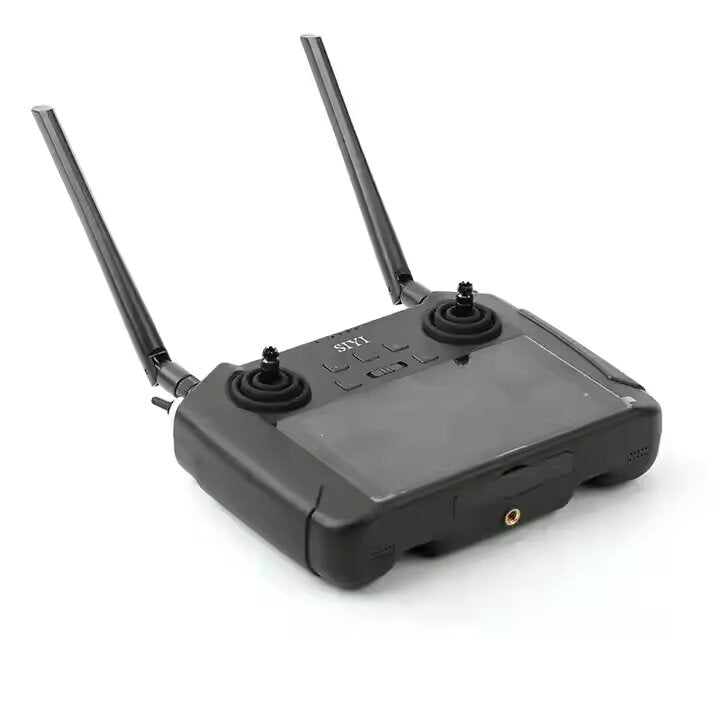

Transmitter (Ground Unit)

Monitor: 5.5inch high definition and high brightness LCD touchscreen

System: Android 9.0 2G RAM, 16G ROM

Dimension (Antenna Foled): 189*138*41mm

Weight: 850g

Battery capacity & type: 10200mAh 7.4V 2S Li-on

Fast charging protocol: PD 30W

Charging time: 3 hours

Battery life: 15 hours

Interface & Ports:

Charging: Type-C

Firmware upgrade: DATA (4-pin)

Mobile network: SIM card slot

External storage: TF card slot

Tripod connect: 1/4-inch screw hole

Video output: standard HDMI

External RTK: DATA (4-pin)

Data transfer: USB-A

Waterproof level: IP53

Working temperature: -10℃ - 55℃

Receiver (Air Unit)

Signal output: 16 channels of S.BUS / 5 channels of PWM

Interface & Ports:

S.BUS: 3-pin

Datalink (to FC): UART 4-pin

PWM channel 1-5: 6-pin

Video input: 8-pin

Firmware upgrade: Type-C

Dimension (Antenna Excluded): 100g

Antenna gain: 5 dBi

Power input: 25.2 - 58.8V (6S-14S)

Working temperature: -10℃  - 55℃

Camera & Searchlight

Camera Angle: FOV 120°

Dimension: 106*25*41mm

Weight: 108g

Searchlight power consumption: 1W / 120 - 140lm

LED type: transparent

LED angle: 120°

Waterproof level: IP67

Working temperature: -10℃  - 55℃
