Battery Voltage Checker

3 IN1 High precision LCD Voltage Checker and Balance Discharger

For you to solve the problem of unbalanced use of lithium battery!
The battery can monitor the voltage of each chip, discharge protection function, and can balance the voltage function of each chip! It's the best assistant for model ship model battery!

Designed for polymer lithium battery and lithium iron phosphate battery, overall and accurate measurement of battery voltage, single voltage for a plurality of series battery balance operation can be executed, the discharge of the battery, in order to avoid damage to the battery is stored for a long time.

The balance function of MKS three in a battery balance display allows battery charging and or use (discharge) before and after implementation of balance function, while also allowing the charger to charge collocation, in the process of simultaneous execution of pressure balance function.

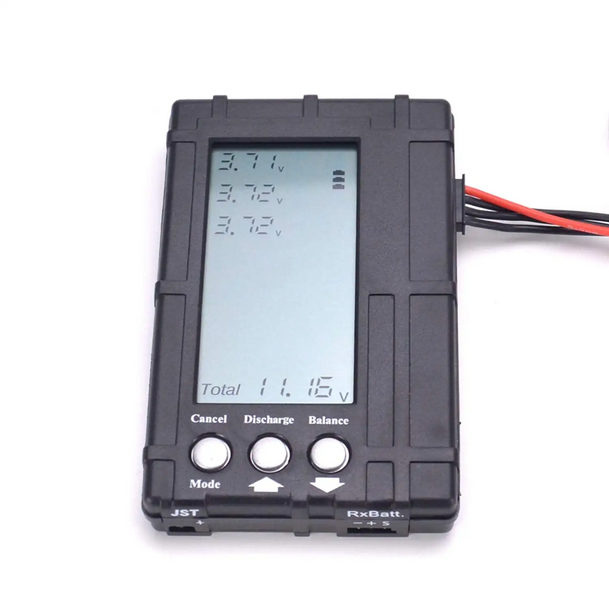

The MKS three in one battery balance display uses a large LCD screen, which can display the voltage value of 6 series lithium batteries at the same time.
Product name     Size     Weight     OEM
3 in 1 balancer     105x65x22mm     81.3g     Yes

The balance function can be executed before/after battery charged, or during battery charging process, to ensure battery pack keeping in excellent condition.
Safe and convenient: it supplies instant voltage reading and indicates abnormal cell immediately.

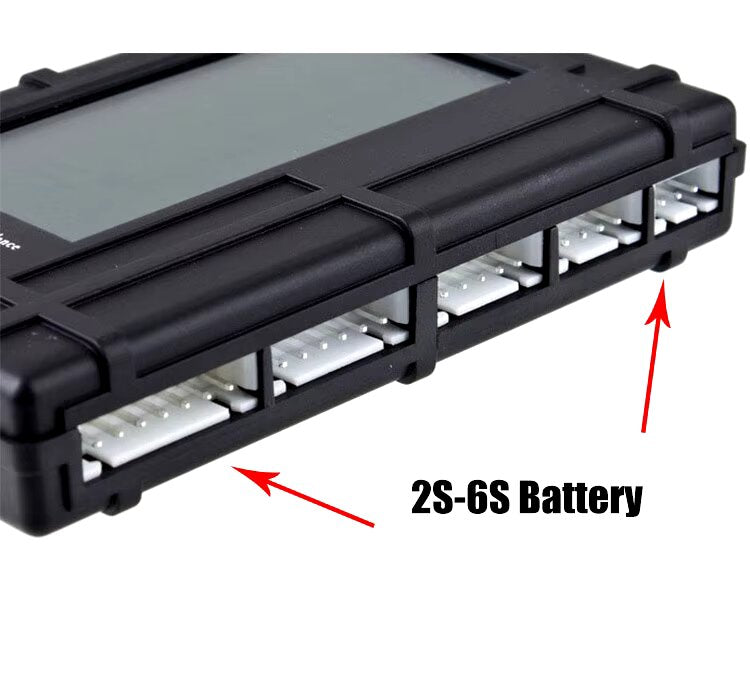

Allow Li-Polymer/Li-Fe 2-6 cell balancing and discharging. With its JST connector for external power, the balancer can measure voltage of receiver battery. The big LCD screen can show 6 cell batteries' condition. Only 3 control keys for easy single-handed control.
Thermal design on the backside for ventilating and preventing overheating. Detailed instruction sheet is included. Small size and light weight, it is easy to carry.

Specification:
Color: black
Measurable battery type and amount:
Li-Polymer/Li-Fe 2-6 Cell (standard voltage 7.4V-25.2V using divided voltage connector)
Receiver battery 1.2V-12V DC (Not battery type limit, but need external power 7.4V-25.2V, use JST connector)
Balance voltage setting range (lower limit): 2.0V-3.9V
(pre-setting value 3.3 V)
Discharge voltage setting range (lower limit): 3.0V-4.2V
(pre-setting value 3.9V)


Package:
1x Lipo battery balancer charger
Weight: 81.3g
Package size: 105*65*22mm
